Spring-back is a common and challenging issue in sheet metal bending processes. As a sheet metal supplier, I've encountered this problem numerous times and have developed effective strategies to compensate for it. In this blog post, I'll share some of the key methods and considerations for dealing with spring-back in sheet metal bending.
Understanding Spring-back in Sheet Metal Bending
Before we dive into the compensation methods, it's crucial to understand what spring-back is. When sheet metal is bent, it undergoes both elastic and plastic deformation. The plastic deformation is permanent, while the elastic deformation is reversible. Once the bending force is removed, the elastic deformation causes the metal to spring back to a certain extent, resulting in a final bend angle that is larger than the desired angle.
Several factors influence the amount of spring-back, including the material properties of the sheet metal (such as yield strength, modulus of elasticity, and work hardening), the thickness of the sheet, the bend radius, and the bending method used. For example, materials with higher yield strength and lower modulus of elasticity tend to have more significant spring-back.
Methods to Compensate for Spring-back
Overbending
One of the most straightforward methods to compensate for spring-back is overbending. This involves bending the sheet metal to an angle that is smaller than the desired final angle, taking into account the expected amount of spring-back. For instance, if the desired bend angle is 90 degrees and the estimated spring-back is 5 degrees, the sheet metal should be bent to 85 degrees. After spring-back occurs, the final angle will be close to the desired 90 degrees.
However, accurately predicting the amount of spring-back for overbending can be challenging. It requires experience and knowledge of the specific material and bending process. Additionally, overbending may not be suitable for all materials, as excessive overbending can cause cracking or other defects in the sheet metal.
Bottoming and Coining
Bottoming and coining are two techniques that can be used to reduce spring-back. Bottoming involves applying a high force to the sheet metal during the bending process to force it into full contact with the die. This helps to increase the plastic deformation and reduce the elastic deformation, thereby minimizing spring-back.
Coining is a more extreme form of bottoming. It involves applying a very high force to the sheet metal to completely reshape the bend area. This not only reduces spring-back but also produces a more precise and consistent bend angle. However, coining requires specialized equipment and can be more expensive than other methods.
Material Selection and Heat Treatment
The choice of material can have a significant impact on spring-back. Some materials, such as stainless steel and aluminum, are more prone to spring-back than others. As a sheet metal supplier, I often recommend using materials with lower yield strength and higher ductility to reduce spring-back.
Heat treatment can also be used to modify the material properties and reduce spring-back. For example, annealing can be used to relieve internal stresses in the sheet metal and make it more ductile. This can help to reduce the amount of spring-back during bending.
Tooling Design
The design of the bending tools can also play a crucial role in compensating for spring-back. For example, using a die with a smaller radius can increase the bending force and reduce spring-back. Additionally, the shape of the die can be optimized to provide better support to the sheet metal during the bending process, reducing the likelihood of spring-back.
Another important aspect of tooling design is the use of adjustable tooling. Adjustable tooling allows for fine-tuning of the bending process to compensate for variations in material properties and other factors that can affect spring-back. This can help to improve the accuracy and consistency of the bending process.
Real-world Applications and Case Studies
In my experience as a sheet metal supplier, I've successfully applied these methods to compensate for spring-back in a variety of applications. For example, in the automotive industry, we've used overbending and tooling design to produce Automotive Engine Flanges CNC Aluminum Flange Customized Service with precise bend angles. By carefully considering the material properties and bending process, we were able to achieve a high level of accuracy and consistency in the production of these parts.

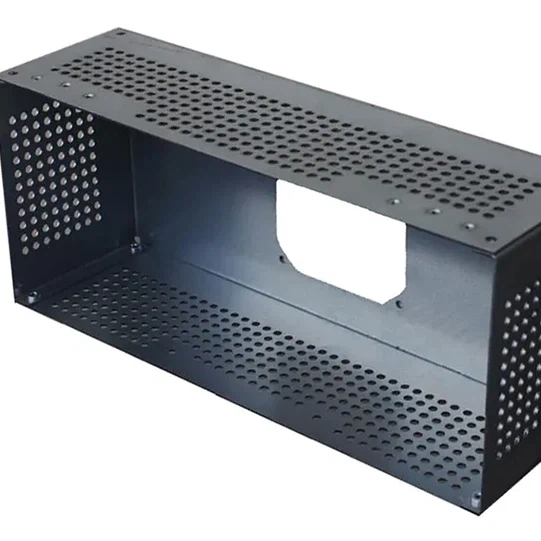

In the electronics industry, we've used bottoming and coining techniques to produce Precision Sheet Metal Parts with minimal spring-back. These parts require tight tolerances and high precision, and the use of these techniques has helped us to meet the strict requirements of our customers.
Conclusion
Compensating for spring-back in sheet metal bending is a complex but essential task. By understanding the factors that influence spring-back and using the appropriate compensation methods, we can produce high-quality sheet metal parts with precise bend angles. As a sheet metal supplier, I'm committed to providing our customers with the best possible solutions for their sheet metal bending needs.
If you're interested in learning more about our sheet metal bending services or have any questions about compensating for spring-back, please don't hesitate to contact us. We'd be happy to discuss your specific requirements and provide you with a customized solution.
